Promaxima

$2,899.00
SKU: PM-P-5800-C-LELC

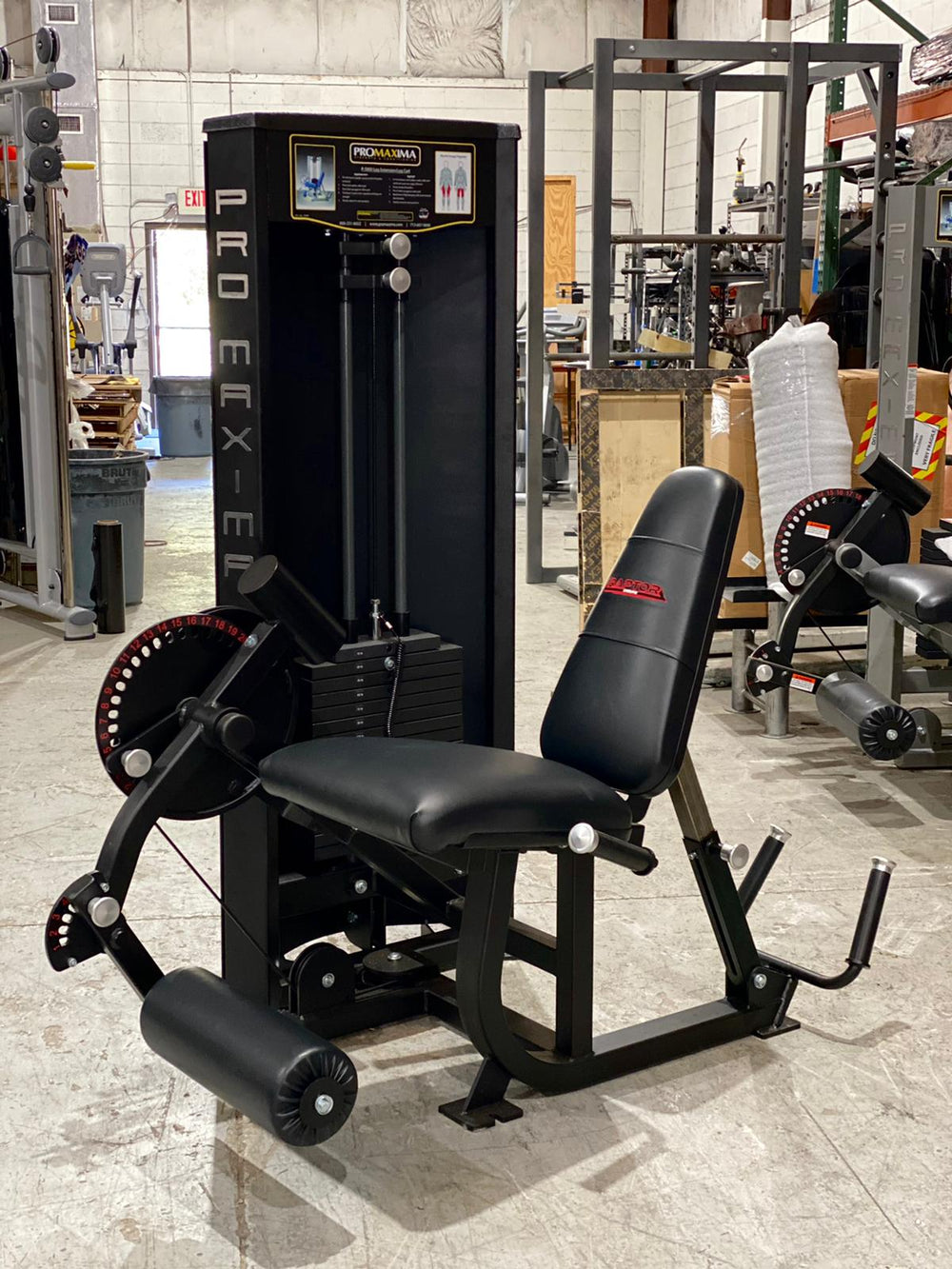

P-5800 Combo Leg Extension/Leg Curl


TECHNICAL SPECS

    • 2"  x 4"  11 guage steel weight stack frame housing.
    • Form fitted outer weight stack shield.
    • ABS seat & back protective dishes.
    • Seamless upholstery.
    • Lower limb adjustment with numerical indexing, 1-5.
    • Start range locator with numerical indexing, 1-6.
    • Seat back adjustment.
    • Bright red colored pull knobs.
    • All axis of rotation have RED, permanent indication.

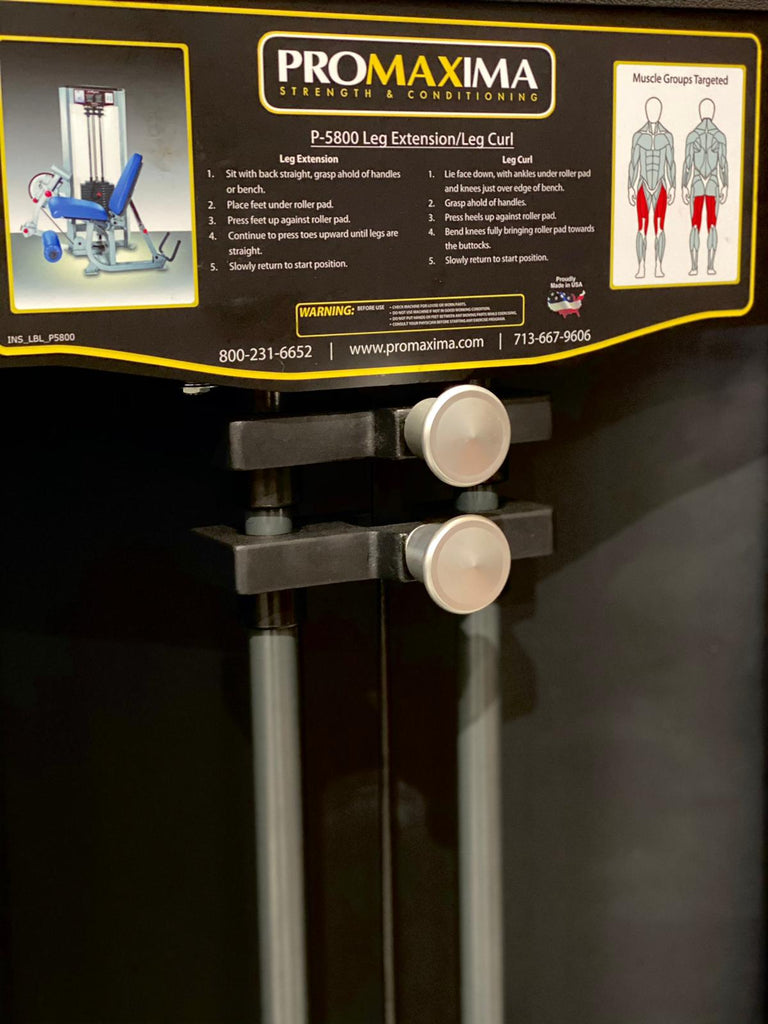

    • Instructional color placard.
    • 250 lb. weight stack.
    • 1/4"  nylon coated aircraft cable driven. 4800 lb. test.
    • All pivoting axis have radial bearings.
    • True strength curve on cam.

GENERAL RAPTOR SPECS

    • Adjustable positions on all machines to accommodate all users to ensure correct bio-mechanical function. Adjustments are made with Heavy Duty spring loaded colored pull-pin knobs.
    • Weight Stacks are adjusted with a tethered, magnetic selector pin that extends through the entire weight stack.
    • Cable system with 1/4" thick 4800lb test military spec galvanized oil impregnated air craft cable finished with a tough nylon coating to 3/16" thick.
    • Manual tension adjusters on every machine for the cable adjustments.
    • Weight stack plates are solid steel machined precisely to with in an oz of weight.
    • Weight stack is accessible from a seated position.
    • Weight stacks are enclosed in full length shrouds.
    • Weight system allows user to increase by 5lb increments.
    • Instructional guide charts used to inform correct usage for each machine along with anatomical highlights to show which muscle groups are being worked.
    • Each machine is made with a lower starting weight stack and has counter-balanced arms when needed.
    • Heavy-duty 40 oz. commercial grade marine Naugahyde upholstery which is 85% mildew resistant. High density closed cell foam reinforced by thick plywood backing for stable support.
    • Exceeds all ASTM requirements.
    • Guide rods are 1" CCRO ANSI 1045, solid steel hard chrome-plated with tensile strength of 75,000psi.
    • Frames are constructed of High Stress 3/16" ASTM A-500 grade B structural steel tubing (11 gauge) 2"x4", 2"x3" tubing. 2"x3" tubing on all uprights, 2"x2"x1/8" ASTM A-500 grade B structural carbon steel tubing (11 gauge) is used on cross members and benches.
    • All welds are ground down and stress tested.
    • Custom color powder coat paint, 3 stage pre-paint preparatory process that includes a state of the art pellet blasting machine system that purifies steel. The steel is then sent through a preheat stage before the final magnetic paint powder is applied and baked for a long lasting hardened finish.
    • Urethane foam grades are a minimal grading of HR-125 (density pcf of 2.60 +/- 0,10 and above in high-compression areas) and HR-150 (density pcf of 4.60 +/- 0.30).
    • Cams are computer designed and laser cut to exact shape to allow proper variable resistance throughout the exercise complete range of motion. All cams are 1/4" thick solid steel. The cams are different for each machine to provide correct movement for the exercise.
    • Shrouded pulley housing is 6"x1/4" thick solid steel.
    • Pulley wheels are 4" and 6" solid fiberglass reinforced body with a 1/2" cable groove. Oil dipped double sealed racer ball bearings with a 1/2" axis shaft hole. Sealed for moisture and dust proof.
